Effective CCTV installations are not just about picking good camera locations. The best results come from planning the coverage properly before you mount anything. A clear strategy reduces blind spots, improves image quality, limits false alarms, and helps the client get the protection they are paying for.
This guide walks through a practical process installers can use to plan CCTV coverage from risk assessment to final testing. It also includes a checklist you can use on-site.
1. Start with a comprehensive risk assessment
Before choosing camera locations or specifications, you need to understand the site, the risks, and what the client wants to achieve.
- Crime profile: Are incidents more likely to be burglary, vandalism, trespassing, theft from vehicles, or fly-tipping?
- Vulnerable points: Doors, gates, ground-floor windows, rear alleys, loading bays, roof access, and shared access routes.
- Environmental factors: Trees, moving signage, reflective surfaces, weather exposure, shadows, headlights, and poor lighting.
- Client priorities: Do they want deterrence, evidence capture, or both?
A risk-led plan helps you decide where detail is needed, where general coverage is enough, and what can be considered lower priority.
2. Consider legal and privacy requirements
CCTV planning is not purely technical. Recording beyond the boundary of the premises can create privacy issues, especially if public areas or neighbouring properties are captured.
- Minimise unnecessary public coverage where possible.
- Use privacy masking if the system supports it.
- Ensure appropriate signage is in place if required.
- Agree on retention and access expectations with the client.
Getting this right early avoids awkward changes after installation.
3. Choose camera types based on the task
Once you understand the risks, choose the right camera type for the job. This helps prevent common issues like wide coverage with no usable detail.
- Fixed cameras: Great for doors, gates, narrow approaches, and known entry points.
- Varifocal cameras: Useful when you need flexibility on site to fine-tune the field of view.
- PTZ cameras: Best for wide areas where active tracking is needed, not as a replacement for fixed coverage.
- Low light or thermal options: Ideal for poorly lit sites, perimeters, or open areas where standard cameras struggle.
In simple terms, plan for detection and identification separately, rather than expecting one camera to do everything.

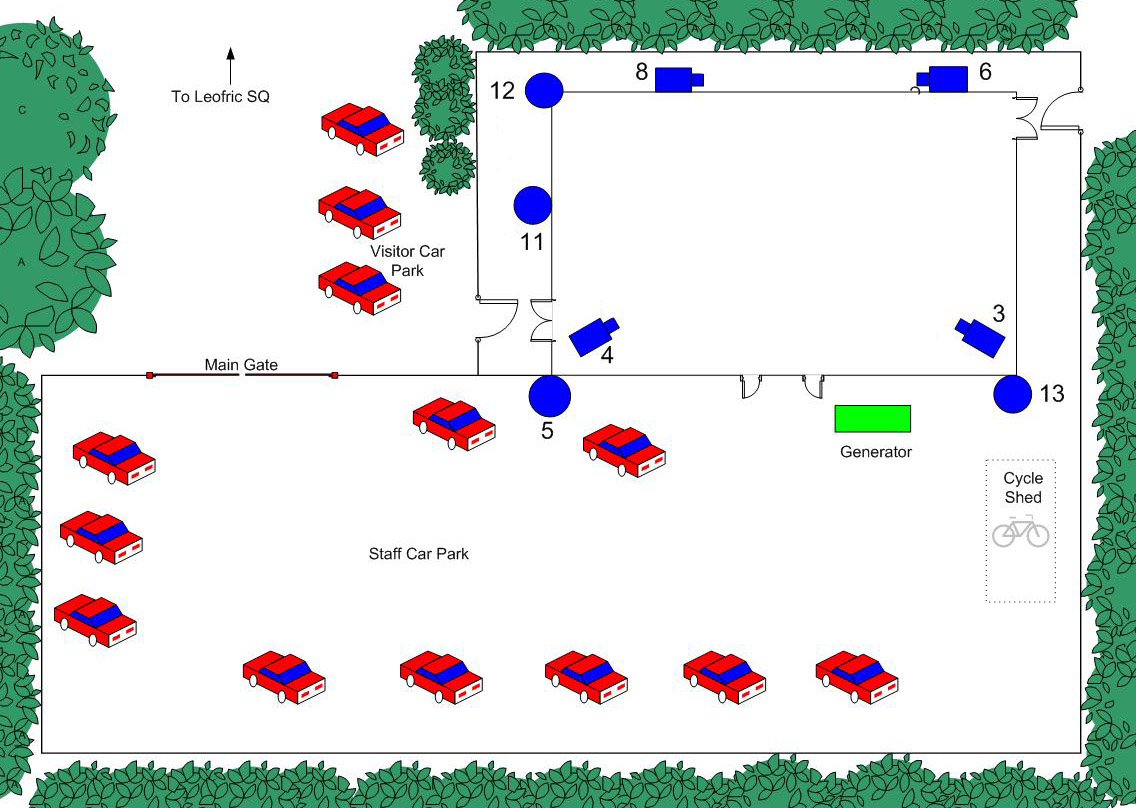

4. Map out coverage zones
Split the site into zones so you can plan logically and avoid gaps.
- High-risk zones: Primary entrances, accessible windows, gates, car parks, and loading areas.
- Medium-risk zones: Side access routes, rear paths, internal yard areas.
- Low-risk zones: Areas with limited access or low value, where general coverage may be enough.
For each zone, confirm:
- Can one camera cover it properly without losing detail?
- Are there likely obstructions now or in future?
- Does the zone need a facial or number plate detail?
- Will lighting conditions change at night?
5. Build in overlap and secondary angles
Good CCTV design does not rely on a single viewpoint. Overlap improves reliability and evidence quality, and it helps if a camera is blocked, damaged, or incorrectly adjusted later.
- Overlap coverage: Use a second angle on key routes so you are not dependent on one camera.
- Multiple perspectives: Useful in busy areas where movement can hide important details.
- Layered coverage: Combine a wide overview camera with a tighter identification camera for critical points.
6. Design for monitoring, not just recording
Many systems are installed purely for evidence after an incident. If the site will be remotely monitored, camera planning should also focus on reducing false alarms and supporting real-time response.
When designing for monitoring, consider:
- Clear detection zones with minimal background movement.
- Avoiding trees, roads, reflective surfaces, and moving lights in the primary detection area.
- Lighting that supports clean images without glare or washout.
- Where audio challenge may be used, ensure the camera position supports effective deterrence.
7. Common planning mistakes installers still see
- Mounting cameras too high and losing identification detail.
- Relying on wide-angle lenses for everything and ending up with footage that is not usable.
- Ignoring seasonal lighting changes and expecting night images to match day performance.
- Not planning network capacity and storage properly for the camera count and resolution.
- Positioning cameras where headlights, reflections, or shadows regularly trigger events.
8. Set expectations clearly with the client
A simple conversation and plan upfront can prevent disputes later. Be clear about:
- What each camera covers and why.
- Any unavoidable blind spots.
- What level of detail is achievable at different distances.
- What happens when an alarm triggers, including any escalation process.
9. Test and validate after installation
Once installed, validate the layout properly. Do not rely on a quick glance at live view.
- Walk-test each camera’s field of view.
- Check daytime and nighttime image quality.
- Confirm playback quality, not just live view.
- Adjust for glare, reflections, and motion triggers.
- Confirm recording retention and export works as expected.
CCTV coverage strategy in 60 seconds
- Assess the risks and client priorities first.
- Choose camera types based on the task, not habit.
- Plan coverage zones and eliminate blind spots.
- Add overlap for critical routes and entry points.
- Consider monitoring needs and false alarm reduction.
- Test properly and set expectations clearly.
Pre-installation coverage planning checklist
- ☐ Risk assessment completed
- ☐ High-risk areas prioritised
- ☐ Blind spots mapped
- ☐ Camera specs matched to the task
- ☐ Lighting assessed (day and night)
- ☐ Legal and privacy considerations checked
- ☐ Monitoring requirements discussed (if applicable)
- ☐ Client expectations confirmed and documented
Working with a monitoring partner during the planning stage
If the site is going to be remotely monitored, involving your monitoring partner early can help:
- reduce commissioning delays
- support correct detection zone setup
- minimise false alarm rates
- improve response outcomes
At Farsight, we are always happy to review proposed layouts with installers to support smoother commissioning and better long-term results.
